The SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on VGA displays thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and VGA at the same time.

Features:
It operate at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Support auto video mode detection (3G/HD/SD). Equalized and re-clocked loop output.
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.

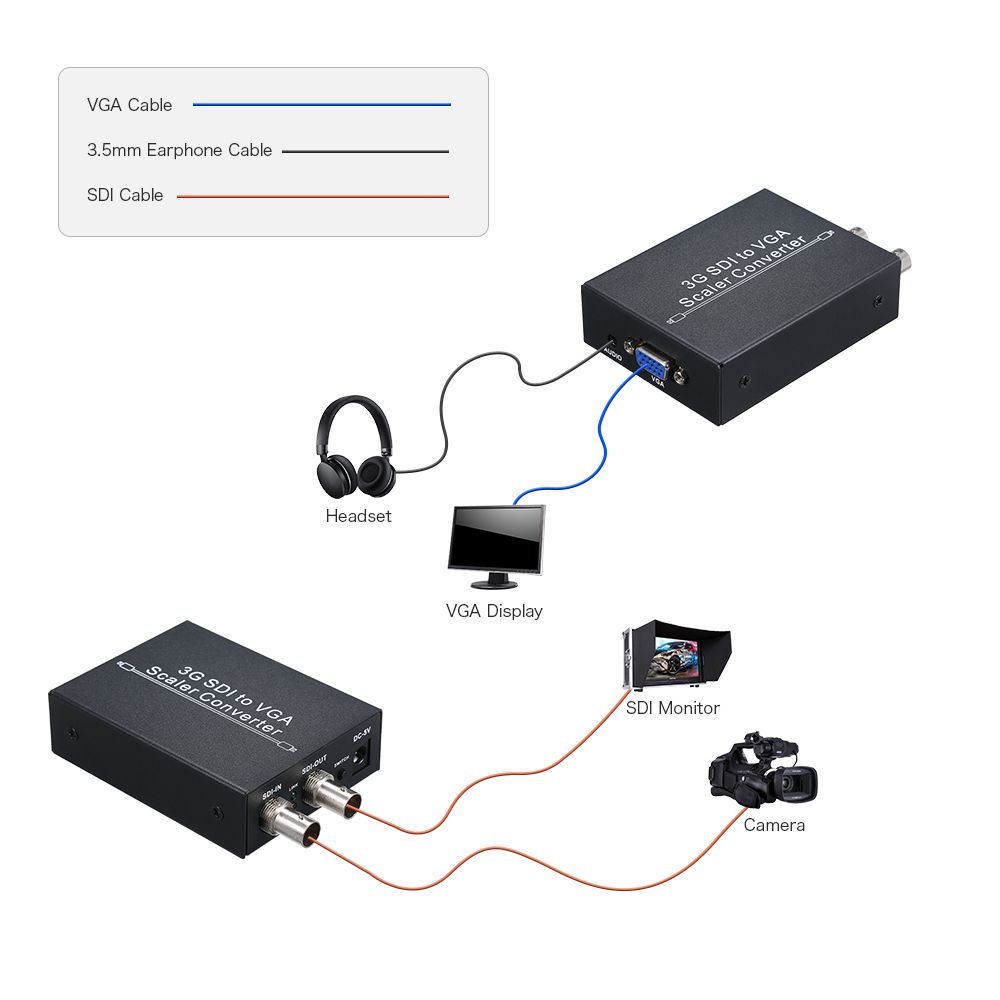

Connect with other units to extend your signal over long distances.
Support signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals.

Specification:
SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution SD: 480i@60, 576i@50
                                   HD:720p@50/60, 1080i@50/60
                                   3G:1080p@24/25/29.97/30/50/59.94/60
VGA Output Resolution: 800x600@60Hz, 1024x768@60Hz,
                                       1280x720@60Hz,1440x900@60Hz
                                       1280x1024@60Hz,1680x1050@60Hz
                                       1600x1200@60Hz,1920x1080@60Hz

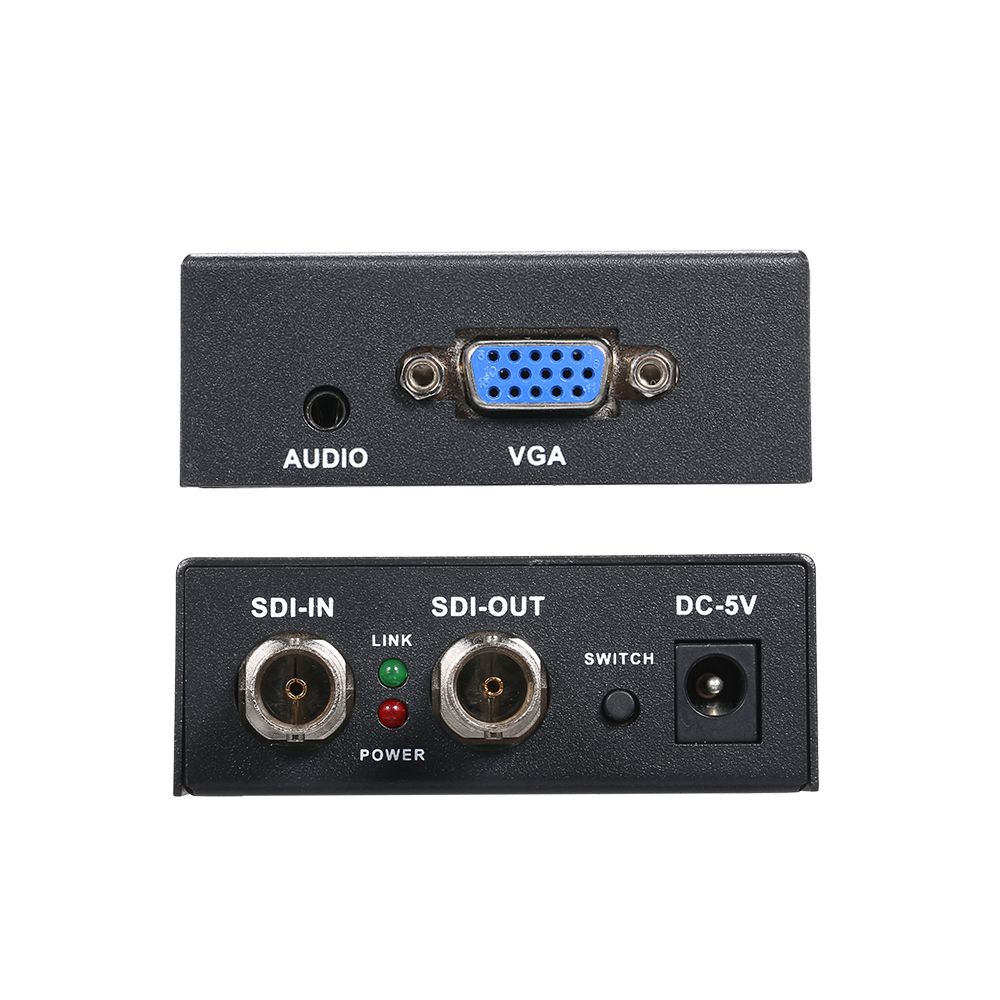

Input Port: 1 x BNC (SD/HD/3G-SDI)
Output Port: 1 x BNC (SD/HD/3G-SDI), 1 x VGA,1 x Earphone(L/R)
Power Supply: DC 5V
ESD Protection Human body model:±8kV (air-gap discharge) ,
                                                          ±4kV (contact discharge)
Item size: 9 * 6.8 * 2.5cm / 3.54 * 2.68 * 0.98in(L * W * H)
Item weight: Approx.199g / 7.02oz
Package size: 19.3 * 14.7 * 6.4cm / 7.60 * 5.79 * 2.52in(L * W * H)
Package weight: 362g / 12.77oz

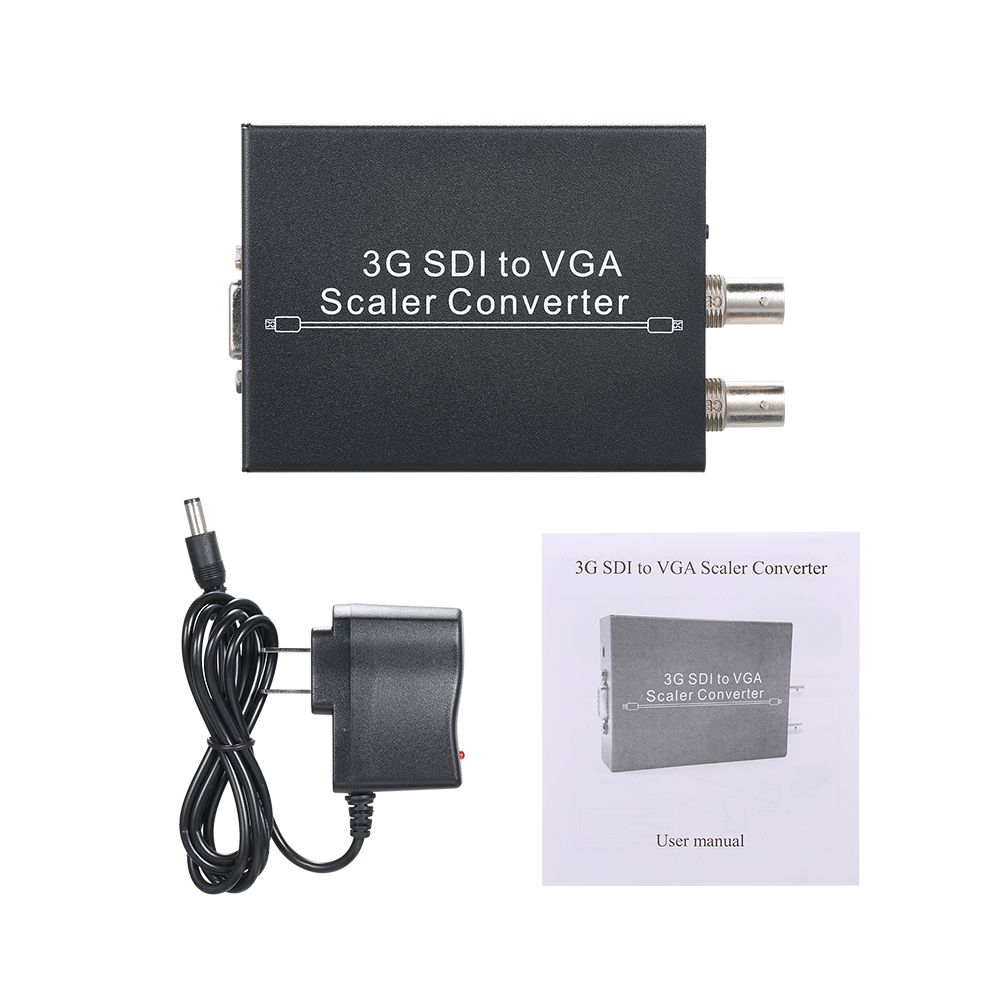

Package list:
1 * SDI to VGA converter

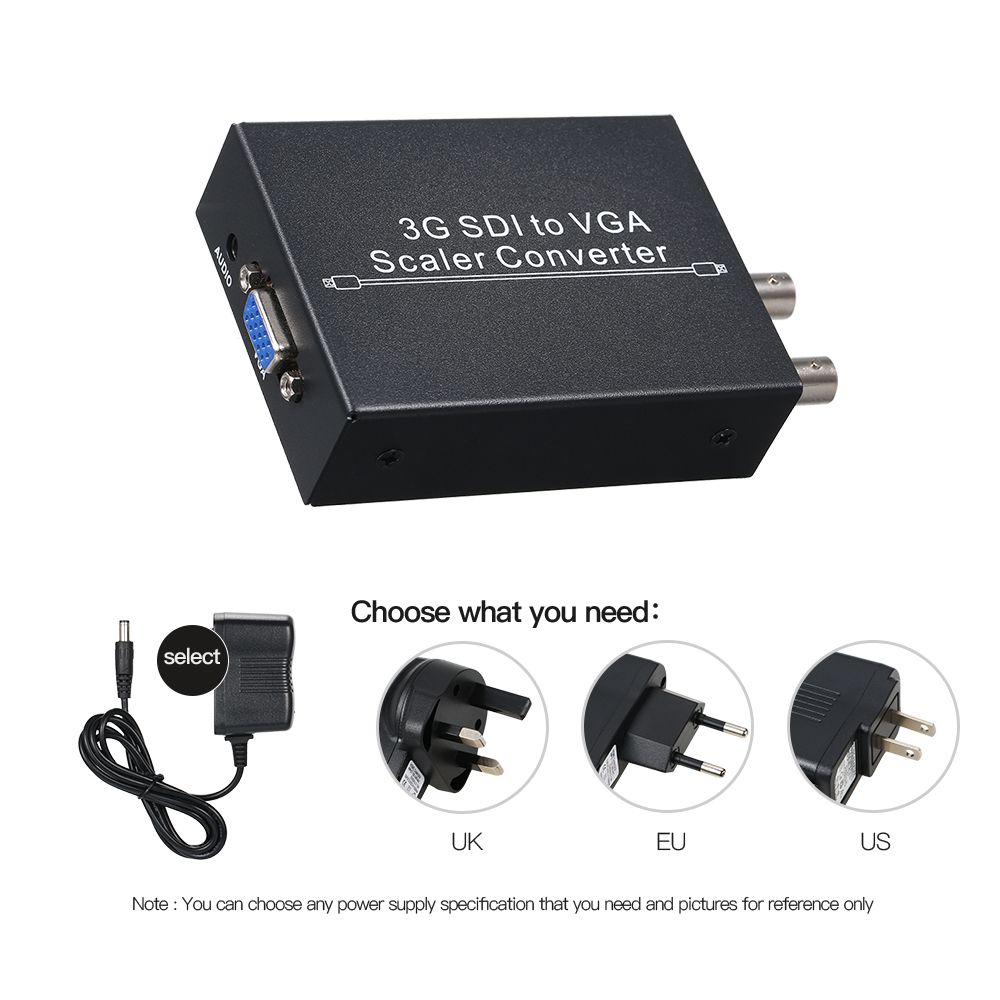

1 * Power Adapter
1 * User Manual
